mini 1.5km 940nm infrared laser lighting module

The 940nm mini size infrared laser illumination module effective distance ≥1500m. It is the smallest in the industry and can be used on standard monitoring ball camera. Adopting fiber IR laser, it has strong ability to penetrate smoke, rain, and haze, Full clear laser lighting technology.

  • Intelligent auto-dimming, Smart Sync Zoom

  • Smart match, Hot-swappable

  • Full clear laser lighting technology

  • Intelligent Temperature Control

  • Light energy utilization rate ≥90%

  • -35 ℃ cold start up

  • Obtaining certification: IEC, CE, RoHS, REACH


I. Market Application

The 940nm mini size infrared laser lighting module effective distance ≥1500m. It is the smallest in the industry and can be used on standard monitoring ball camera. Adopting fiber IR laser, it has strong ability to penetrate smoke, rain, and haze. Using 3KM Independently developed full clear laser lighting technology, It is the industry's first fully clear infrared laser lighting module, not only has clear spot edges, but also maintains transparent image quality and clear image during automatic zoom. Solved the problem of virtual focus blurring that cannot be avoided when traditional infrared laser light zoom due to inconsistent optical axis and stride.


1.5km mini size 940nm infrared laser ligting Night vision monitoring system

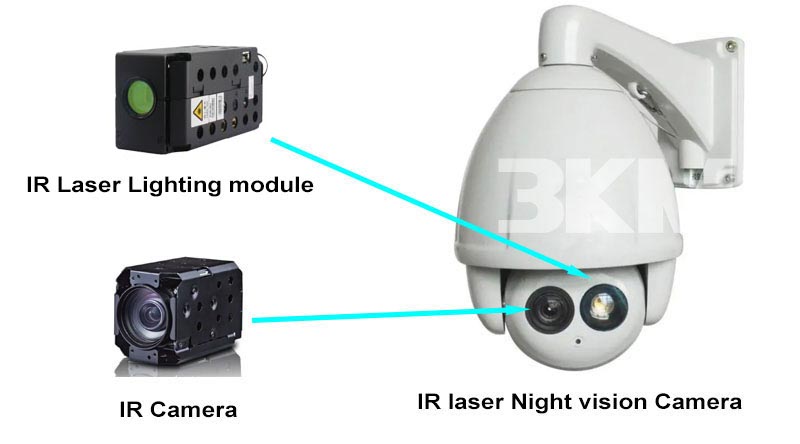

mini size infrared laser ligting Night vision monitoring system


The 1.5km mini size infrared laser lighting module is available in 808nm and 940nm wavelengths. It can be used with video surveillance domes and surveillance pan/tilts. It is plug-and-play and can easily create a highly intelligent night vision surveillance system.  Best night vision illumination distance range from 30m to 1500m, it can meet the professional applications of high-definition night vision surveillance quality requirements, such as: safe city, intelligent transportation, automotive systems, prisons, border Haiphong, forest fire prevention, oil depots, large-scale plant, the security sector, ecological reserves, mining energy, water power, airports, ports, administrative law enforcement, fishery and maritime surveillance and so on.



1.5km mini size Infrared laser lighting module test results


mini size Infrared laser lighting module test results


II. Product Features

1. Intelligent features

  • Photosensitive automatic dimming, passive dimming and remote background dimming a variety of dimming methods

  • Intelligent synchronous zoom, and the camera Angle automatically adaptation, intelligent adjustment of light intensity, preset support system, synchronous electric zoom  0.8 ° ~ 70 ° continuous adjustable, achieve perfect lighting effect;

  • Perfectly match monitoring equipment of different brands and models, plug and play, without Angle matching;

  • The system software can monitor the working state of laser and control it intelligently.


2. Technical Features

  • A number of technology patent products

  • Adopting fiber infrared laser

  • The spot boundary is clear

  • Precise current design, low thermal redundancy and ultra low power consumption

  • The intelligent temperature control protection ensures that the temperature of the whole machine is still in the working range


III. Technical Parameters

Parameters

Values and Description

Product ID

K10010063

Model

IR-940-1500-S

Effective Distance

≥1500m

Wavelength

940±10nm

Consumed Power

≤28W

Output Power

10±1W

Lighting Angle

0.8°~70°(Continuous zoom)

Spot Diameter

φ21m(@0.8°,@1500m)

Working Voltage

DC12V±10%

Laser Safety Distance

≥60m(@0.8°,@Pomax)

Control Mode

RS23285、Manual Control, Optional

Communication Interface

RS-485/UART portTTL(Default: 9600bps)

Communication Protocol

Pelco_D

Operating Temperature

-35℃~+55℃

Storage Temperature

-50℃~+100℃

Profile Dimensions

L*W*H:147*64*63mm

Weight

550g

Note: the infrared laser illumination module parameters are subject to the quotation scheme, subject to change without prior notice.




IV. Overall Dimensions

1.5km mini size 940nm Infrared laser lighting module Overall Dimensions

V. Interface Definition

1.5km mini size 940nm Infrared laser lighting module Interface Definition

VI. Notes

  • The Infrared Laser Lighting Modules belong to the class 4 non-visible light laser. While the laser light is on, back-light looking at or observing laser light beam with optical instrument is strictly prohibited.

  • While the Infrared Laser Lighting Module is on, flammable objects are strictly prohibited within 100cm in front of the lens to prevent fires.

  • The Infrared Laser Lighting Module should be installed where people could not look at it directly or it should be a long enough distance from where people could look directly. Manufactures should choose the Laser radiation power according to its actual application environment, in order to avoid hurting people's eyes.

  • Manufactures using our Infrared Laser Lighting Modules should put labels warning of laser radiation.

  • When device fault occurs, please contact with our qualified maintenance personnel for service rather than disassemble it at your own discretion, otherwise warranty will be end of the moment you disassemble it.
